CNC Laser Scanning Capabilities

RAM Tool is a leading tool and dies company that specializes in the design and manufacture of high-quality precision tools and dies. In addition to its traditional tool and die capabilities, RAM Tool also boasts advanced laser scanning technology that allows us to quickly and accurately capture 3D data of complex shapes and surfaces for our clients. This state-of-the-art laser scanning technology enables RAM Tool to create highly precise and accurate 3D models of its customers' parts, ensuring the highest level of quality and efficiency in its manufacturing processes. Whether it's our precision machining capabilities or laser scanning technology we are committed to providing our customers with the highest level of quality and service.

Request a Quote



What is CNC Laser Scanning?

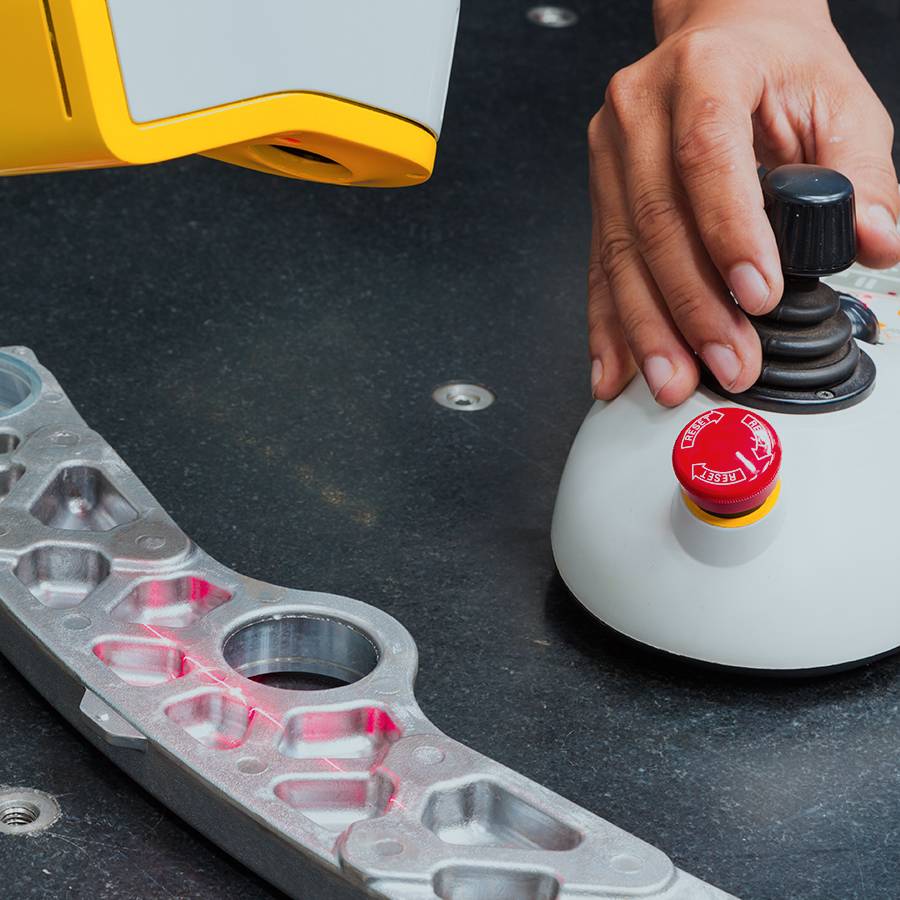

Laser scanning is a technology that uses a laser beam to scan the surface of an object and capture detailed 3D data about its shape and features. In a CNC (computer numerical control) tool and die shop, laser scanning can be used to quickly and accurately capture 3D data of complex shapes and surfaces, which can then be used to create precise and accurate 3D models. These 3D models can be used in the design and manufacturing processes, allowing the tool and die shops to create highly precise and efficient tools and dies.

Laser scanning can be used in a variety of different applications in CNC tool and die shops, including reverse engineering, quality control, and prototyping. It can also be used to quickly and accurately capture data on existing parts and tools, allowing the tool and die shops to make modifications or updates as needed. Overall, laser scanning is a powerful and versatile tool that can greatly improve the efficiency and accuracy of the tool and die manufacturing processes.

Get Started

RAM Tool CNC Laser Scanning Machinery Grafton, WI

Our Milling Capabilities

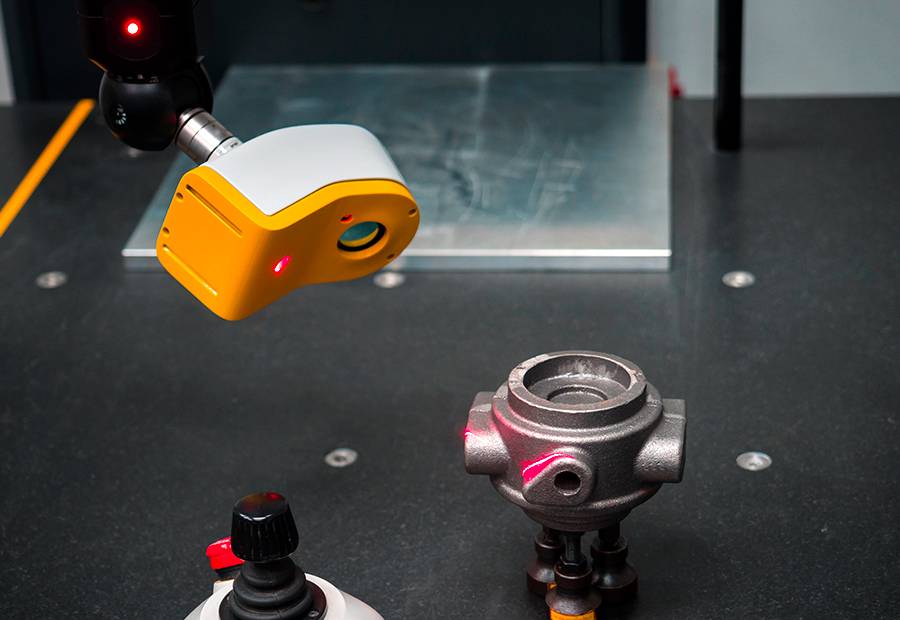

The Nikon LC60Dx is a state-of-the-art 3D scanning device that is packed with a variety of features that make it well-suited for a range of applications. One of the key features of this device is its high-resolution scanning capability. The LC60Dx is able to capture point clouds with a resolution of up to 0.5 mm, which enables the creation of detailed 3D models of various objects and surfaces.

AccordinSectionSideImageAlt

Another notable feature of the LC60Dx is its wide measurement range. It is able to scan objects and surfaces at distances ranging from 50 mm to 2 m, making it suitable for a variety of measurement tasks. The device also boasts high accuracy, with a measurement accuracy of up to 0.05 mm, ensuring that the results obtained are reliable and accurate.

In addition to its high-resolution scanning and wide measurement range, the LC60Dx also offers multiple scanning modes. These include single-point scanning, line scanning, and multi-line scanning, allowing users to choose the mode that best fits their needs and requirements. Overall, the Nikon LC60Dx is a versatile and powerful tool for 3D surface scanning and measurement applications.

Contact Us

Advantages and Benefits of Laser Scanning in Precision Machining

There are several advantages and benefits of using laser scanning in precision machining:

High accuracy

Laser scanners are capable of capturing high-resolution 3D data with a high level of accuracy, which can be used to create highly precise and accurate 3D models.

Speed

Laser scanning is a fast process that allows machinists to quickly capture 3D data of complex shapes and surfaces, reducing the time needed for design and manufacturing processes.

Versatility

Laser scanners can be used to scan a wide range of materials, including metals, plastics, and composites, making them versatile tools for precision machining.

Improved efficiency

By using laser scanning to create accurate 3D models, machinists can reduce the need for costly prototyping and trial-and-error processes, improving the overall efficiency of their work.

Quality control

Laser scanning can be used to quickly and accurately measure parts and tools, allowing machinists to ensure that they meet the required tolerances and specifications.

Flexibility

Laser scanning technology can be used to measure complex shapes and contours that would be difficult or impossible to measure with traditional methods. This allows for greater design flexibility and the ability to manufacture more intricate parts.

Our Industries Served

RAM Tool, Inc. is proud to offer a range of laser scanning services to various industries. Our experience in the defense, construction, aerospace, automotive, mining, and oil and gas industries has allowed us to handle projects that require the utmost precision and quality.

All Industries

Contact RAM Tool
About Laser
Scanning Capabilities

At RAM Tool, we take pride in being on the cutting edge of the ever-changing industry needs. From state-of-the-art metalworking tools to the latest technology and software, we are constantly looking for ways to improve our processes and capabilities for our customers. The diverse range of technologies employed in our facility allows us to take on even the most challenging projects and turn them into quality-built products. Our laser scanning capabilities allow us to fulfill virtually any customer need.

To see how our laser scanning capabilities at RAM Tool can serve your project or operation, please contact us today.
